Grinding Media
Our grinding media deliver exceptional performance with high abrasion-resistant grinding, strength, and durability, ensuring peak efficiency, minimal wear, and reduced mill downtime.
Key Features
- Cast alloy grinding balls with high abrasion-resistance, categorized under white cast grade.
- Contain a specific percentage of chromium, featuring a martensitic base structure and ultra-hard chrome carbides.
- Four decades of expertise ensure a balance between strength and hardness for end-use applications.
- Achieves low wear, optimal grinding output, and reduced specific consumption leading to minimized mill downtime and maximum throughput.

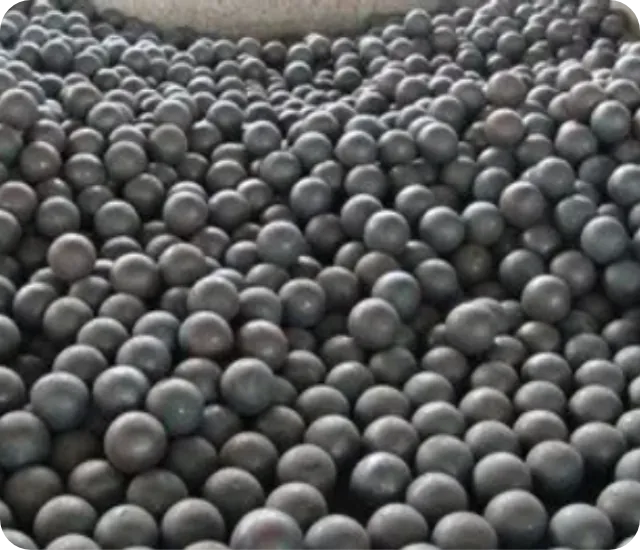

Our clients value our High Chrome Grinding Media Balls for their effectiveness and durability, and they are used in a variety of industrial operations. These items are tailored to meet the needs of the customers.
The following range of High Chrome Grinding Media Balls are available:
- Dimensions: 15 mm to 125 mm
- Carbon : 1.25 to 3%
- Hardness ranges from 58 to 68 HRC
- Chrome : 3 to 30 %

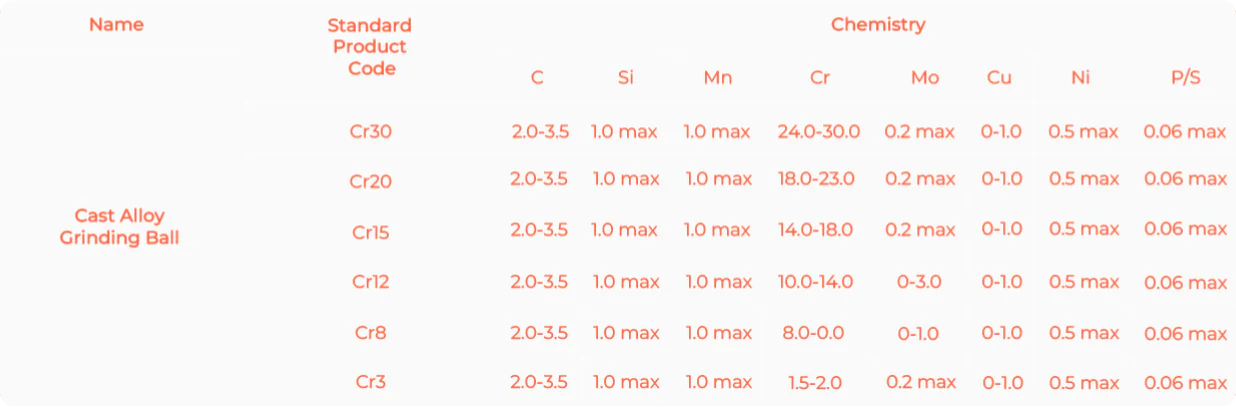

Grade

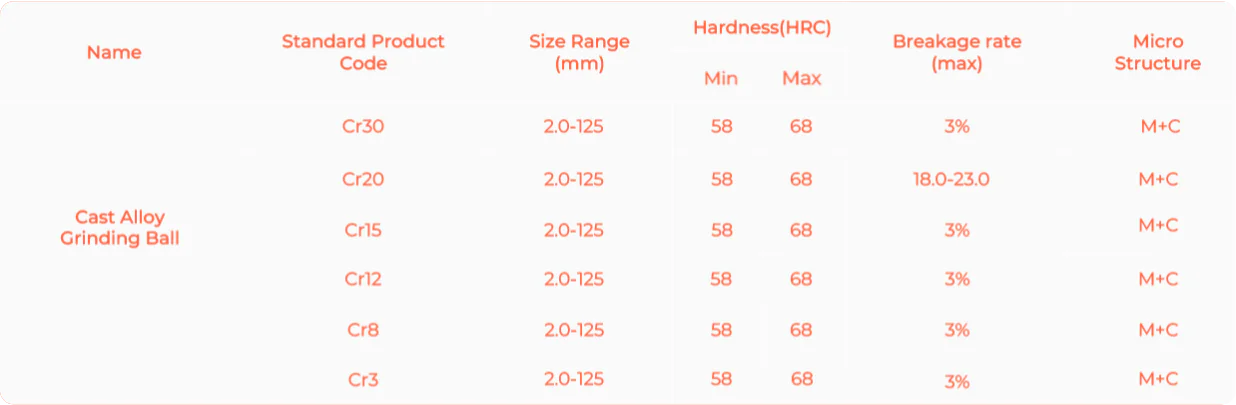

Grade and Physical aspects

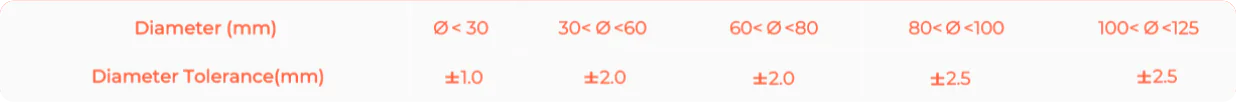

Size Tolerances

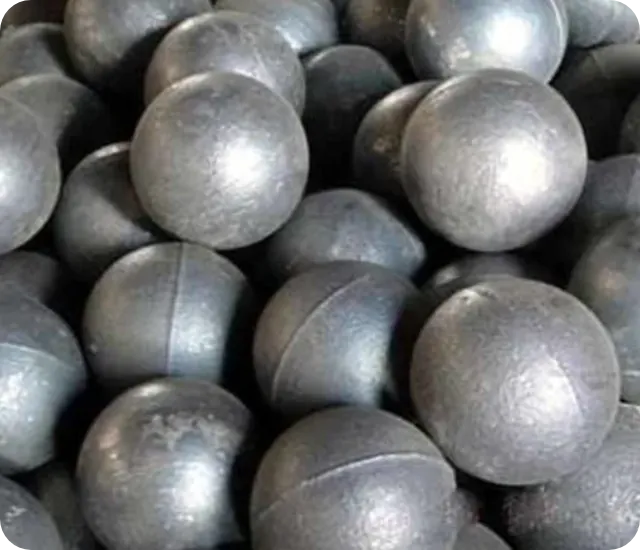

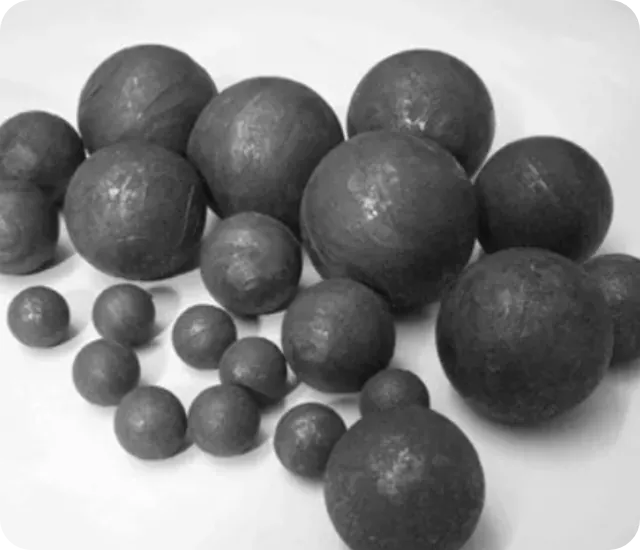

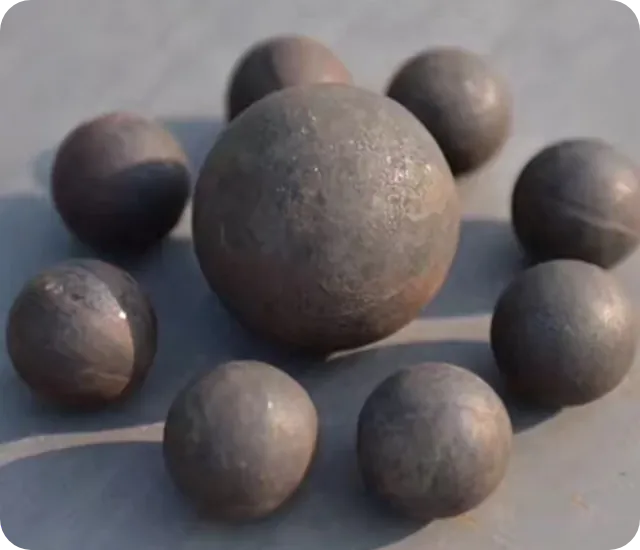

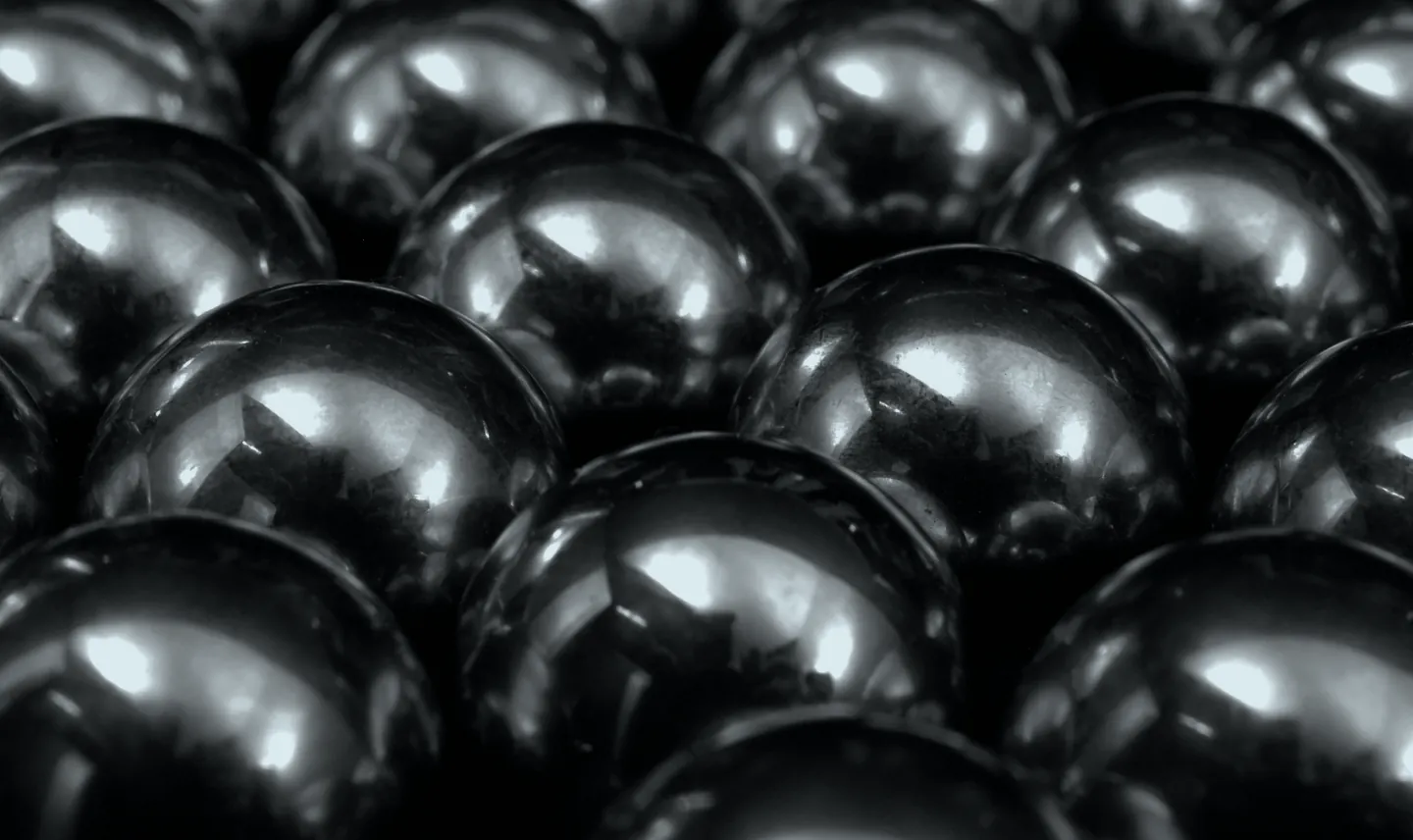

Our company plays a major role in offering our clients with a high-quality range of Hyper Steel Grinding Media Balls. These items are made using high-quality raw materials such as metals and alloys and modern machinery, ensuring the end user's durability.
Image 1 of 3
Our range is as follows:
- Diameter: 15 mm to 150 mm
- Specification: As per IS 6079
- Hardness: 375 BHN to 500 BHN

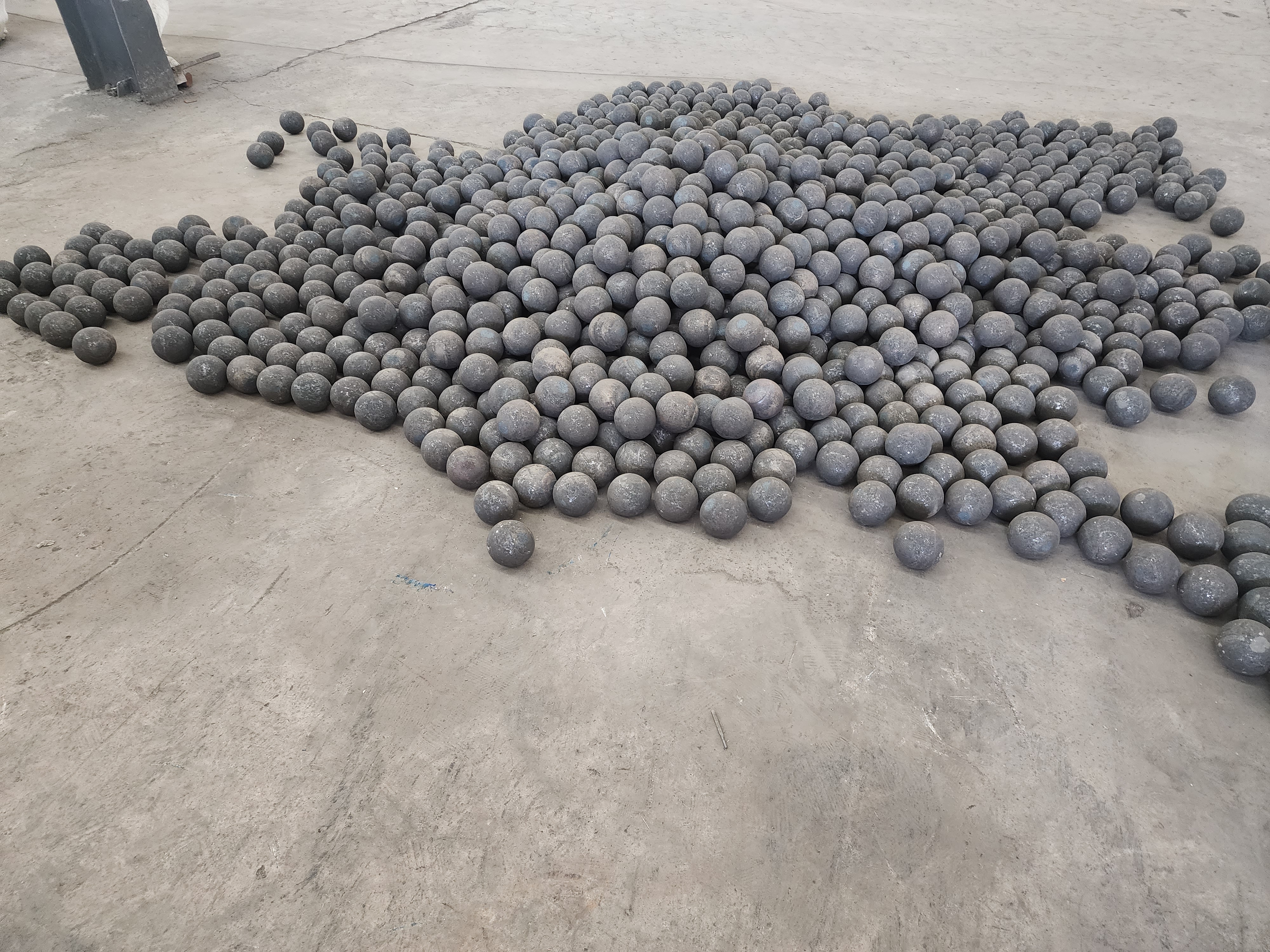

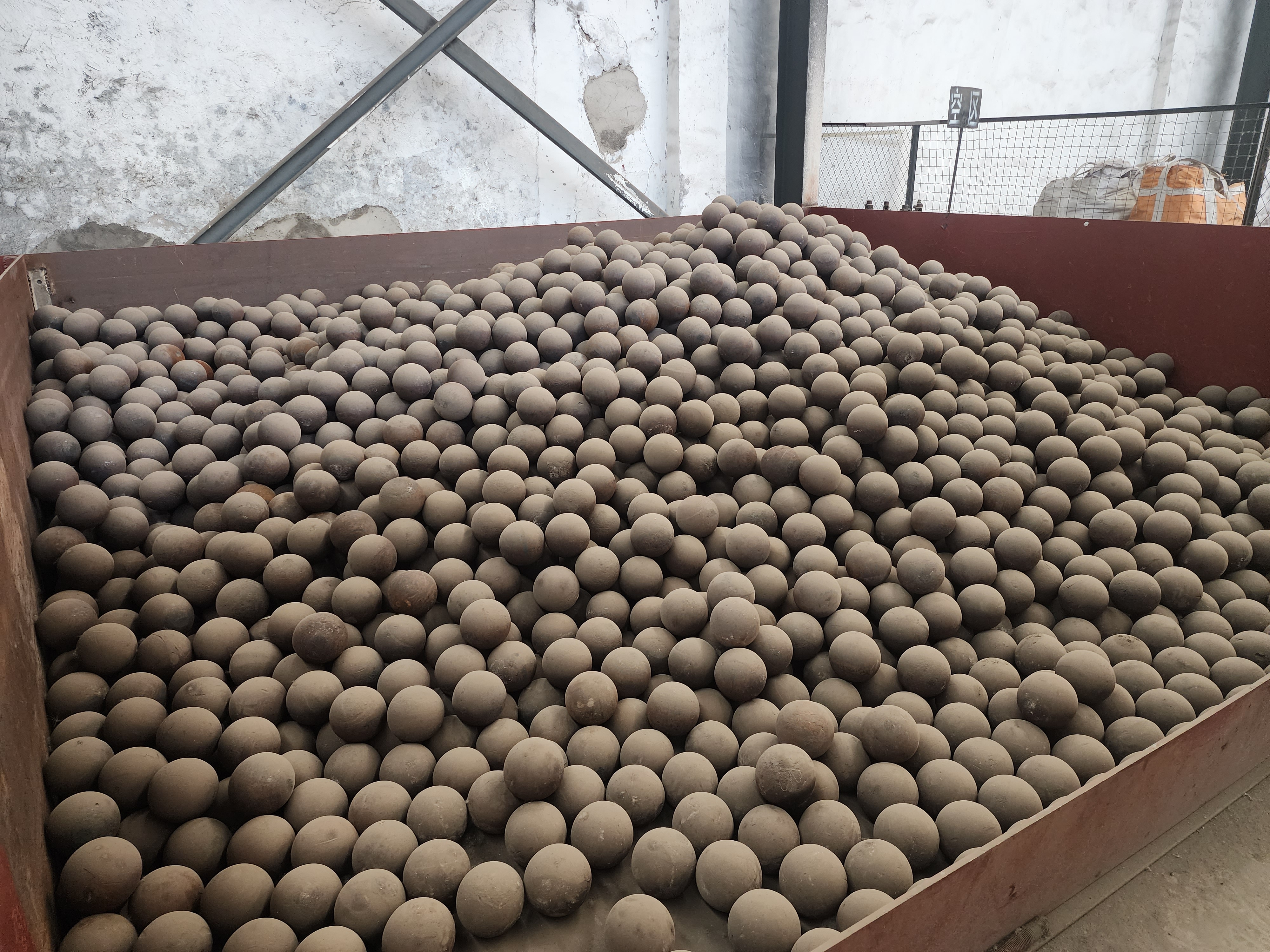

Our grinding media, forged from premium steel bars, offers exceptional hardness and high impact resistance. The forging process ensures a defect-free internal structure, leading to superior wear resistance.
Our range is as follows
- Diameter: -20 mm to 150mm
- Technical analyse : -B2 & B3
- Hardness : 58 to 666 HRC
Image 1 of 2
Technical Analysis:
| Grade | C | Mn | Si | Cr | P | S |
|---|---|---|---|---|---|---|
| B2 | 0.76-0.83 | 0.82-0.92 | 0.20-0.30 | 0.53-0.63 | <0.03 | <0.25 |
| B3 | 0.58-0.66 | 0.65-0.85 | 1.6-1.9 | 0.70-0.90 | <0.03 | <0.015 |
B2 & B3 Benefits:
- Lower wear & breakage rate.
- B2 material - Slightly lower carbon and higher chromium, ensures uniform hardness (surface + core).
- B3 material - High carbon content improves surface hardness but reduces impact toughness. B3’s optimized composition minimizes breakage.
- S&P content: Harmful elements (S&P) are lower. Extending service life.
